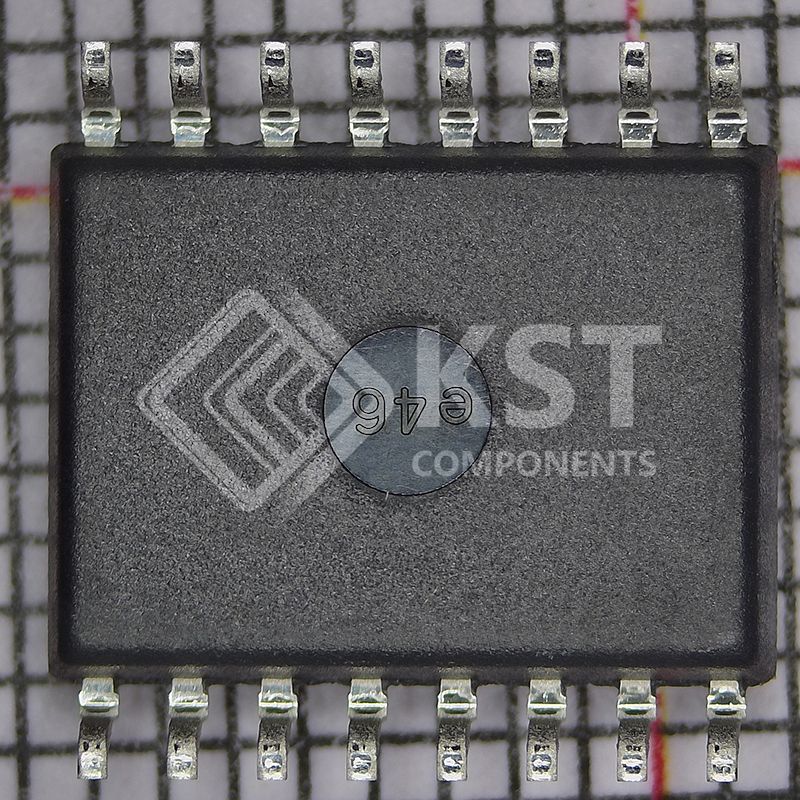

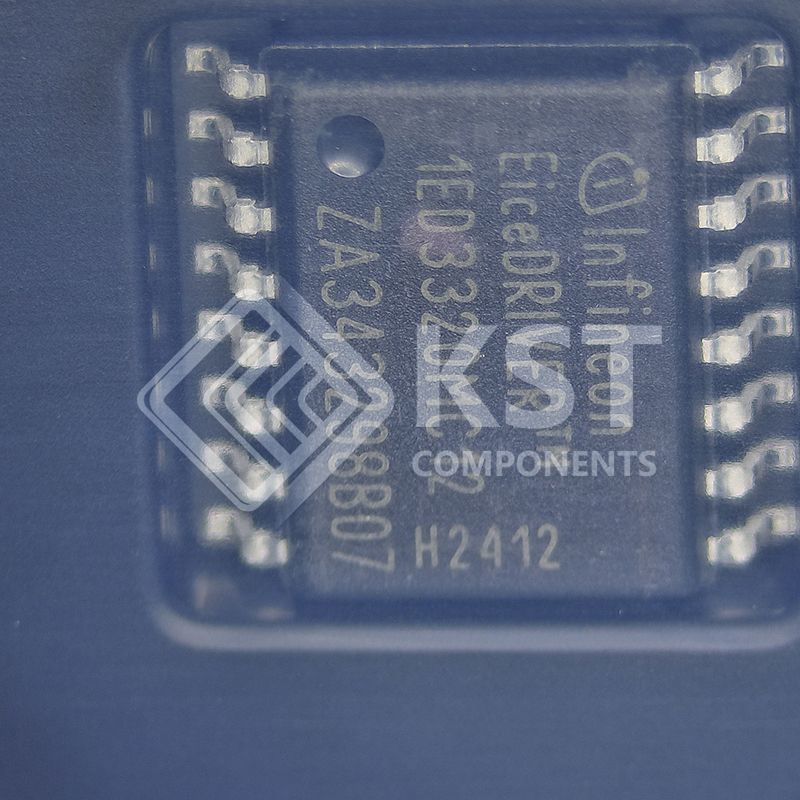

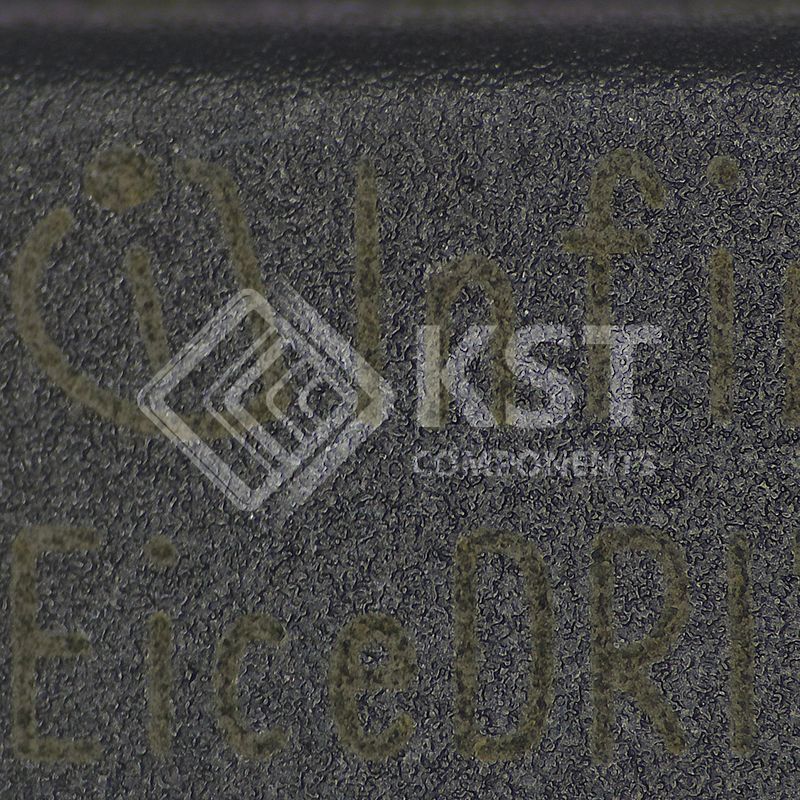

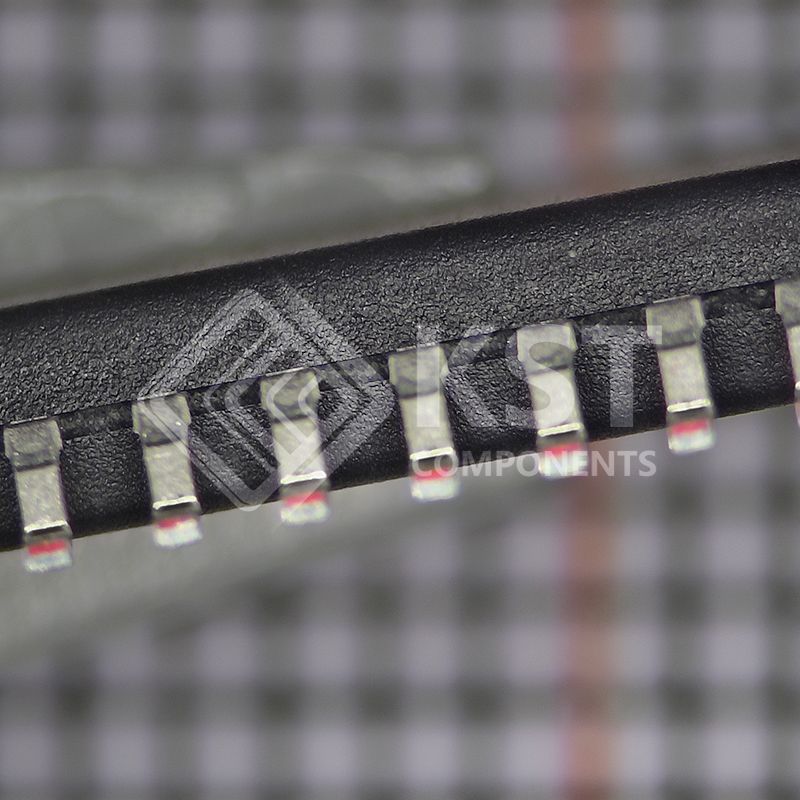

1ED3320MC12NXUMA1
Part Number:
1ED3320MC12NXUMA1
Product Classification:
Accessories - Caps
Manufacturer:
AIC tech
Description:
DGT ISO 5.7KV 1CH GT DVR DSO16
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Isolators
Isolators - Gate Drivers
|
|
|
Mfr |
Infineon Technologies |
|
|
Series |
EiceDRIVER™ |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
Magnetic Coupling
|
|
|
Number of Channels |
1
|
|
|
Voltage - Isolation |
5700Vrms
|
|
|
Common Mode Transient Immunity (Min) |
300kV/µs
|
|
|
Propagation Delay tpLH / tpHL (Max) |
84ns, 92ns
|
|
|
Pulse Width Distortion (Max) |
-
|
|
|
Rise / Fall Time (Typ) |
15ns, 15ns
|
|
|
Current - Output High, Low |
3.3A, 6A
|
|
|
Current - Peak Output |
5A, 5A
|
|
|
Voltage - Forward (Vf) (Typ) |
-
|
|
|
Voltage - Output Supply |
40V
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
16-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
PG-DSO-16-40
|
|
|
Approval Agency |
UL
|
|
|
Base Product Number |
1ED332 |
|
