1987973
Part Number:
1987973
Product Classification:
LED Lighting Kits
Manufacturer:
BERNIER CONNECT
Description:

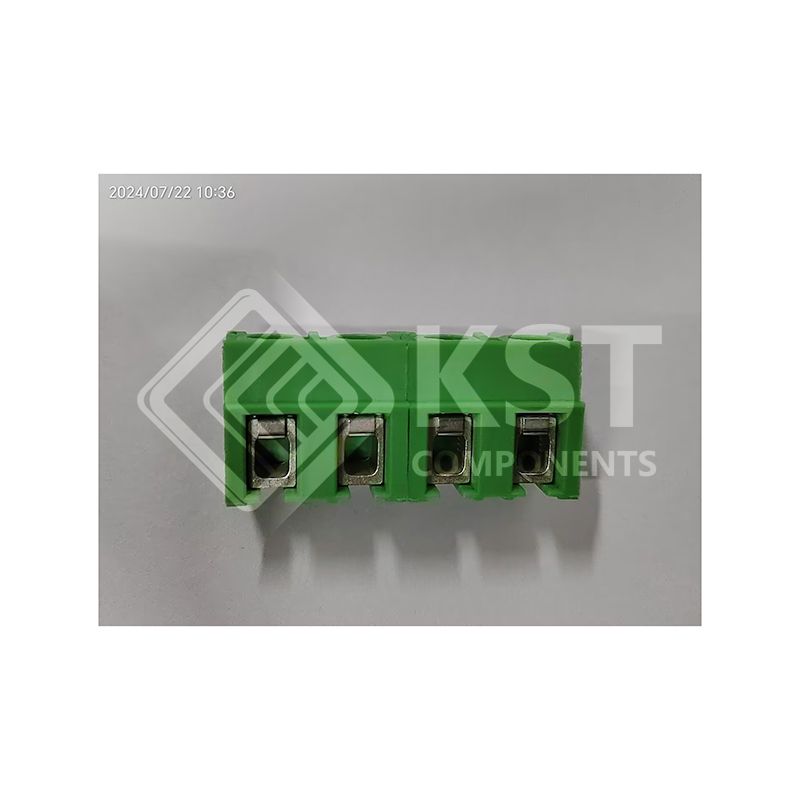

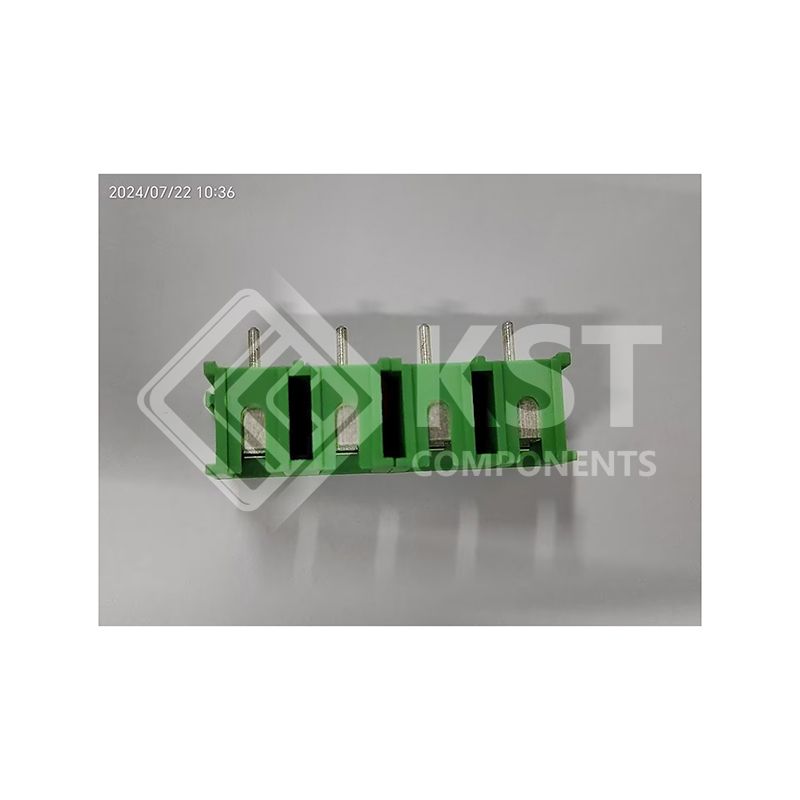

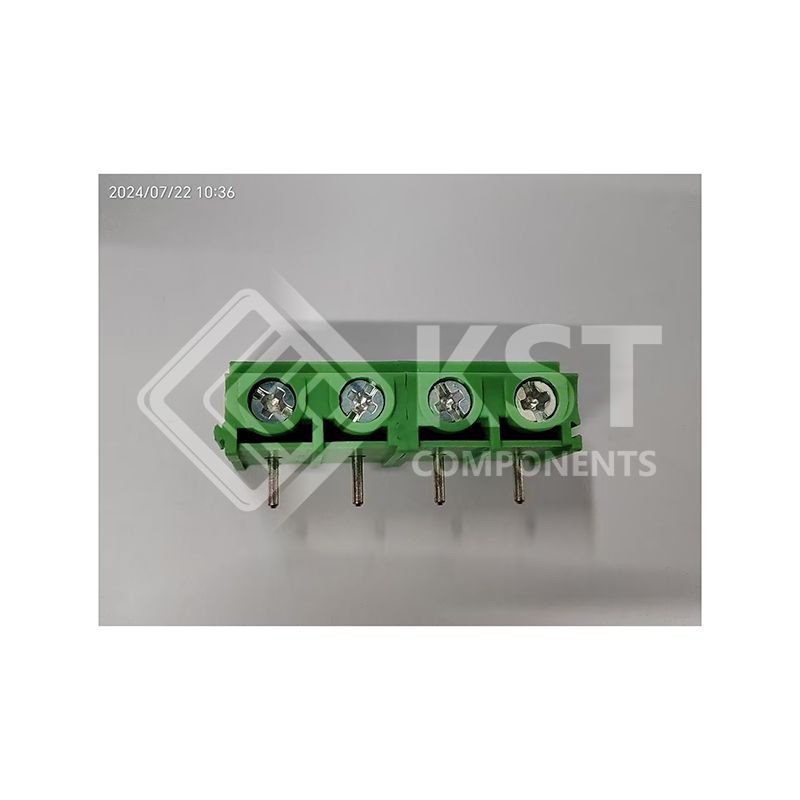

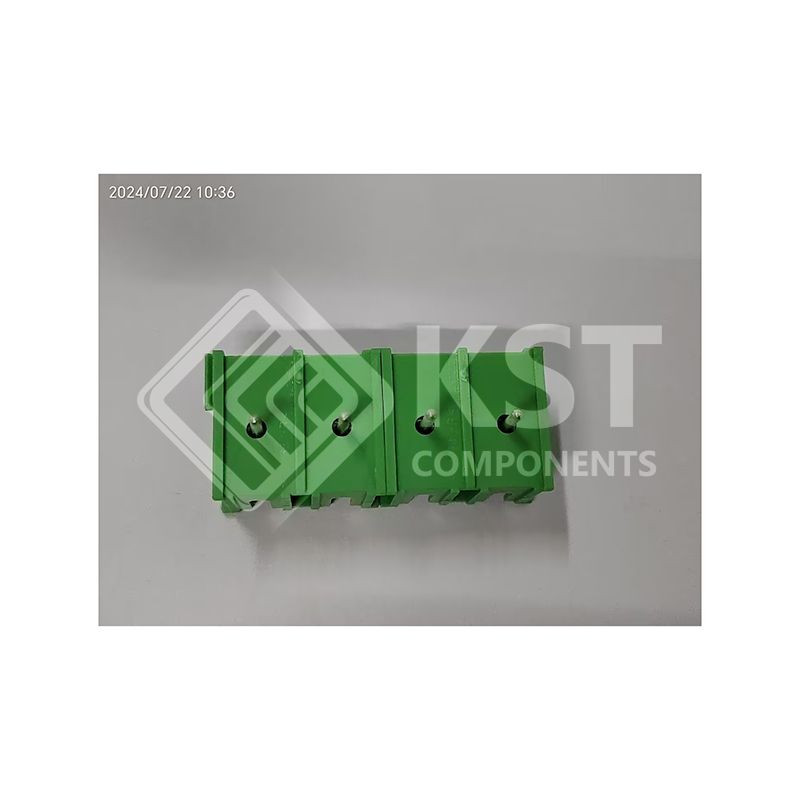

TERM BLK 4P TOP ENTRY 7.5MM PCB
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Terminal Blocks
Wire to Board
|
|
|
Manufacturer |
Phoenix Contact
|
|
|
Series |
COMBICON PT |
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Number of Levels |
1
|
|
|
Positions Per Level |
4
|
|
|
Pitch |
0.295" (7.50mm)
|
|
|
Mating Orientation |
Vertical with Board
|
|
|
Current |
20 A
|
|
|
Voltage |
300 V
|
|
|
Wire Gauge |
12-20 AWG
|
|
|
Mounting Type |
Through Hole
|
|
|
Wire Termination |
Screw - Leaf Spring, Wire Guard
|
|
|
Features |
Interlocking (Side)
|
|
|
Color |
Green
|
|
|
Operating Temperature |
-
|
|
|
Housing Material |
Polyamide (PA), Nylon
|
|
|
Contact Material - Plating |
-
|
|
|
Clamp Material - Plating |
-
|
|
|
Screw Material - Plating |
-
|
|
|
Torque - Screw |
0.45-0.5 Nm (3.9-4.4 Lb-In)
|
|
|
Screw Thread |
M3
|
