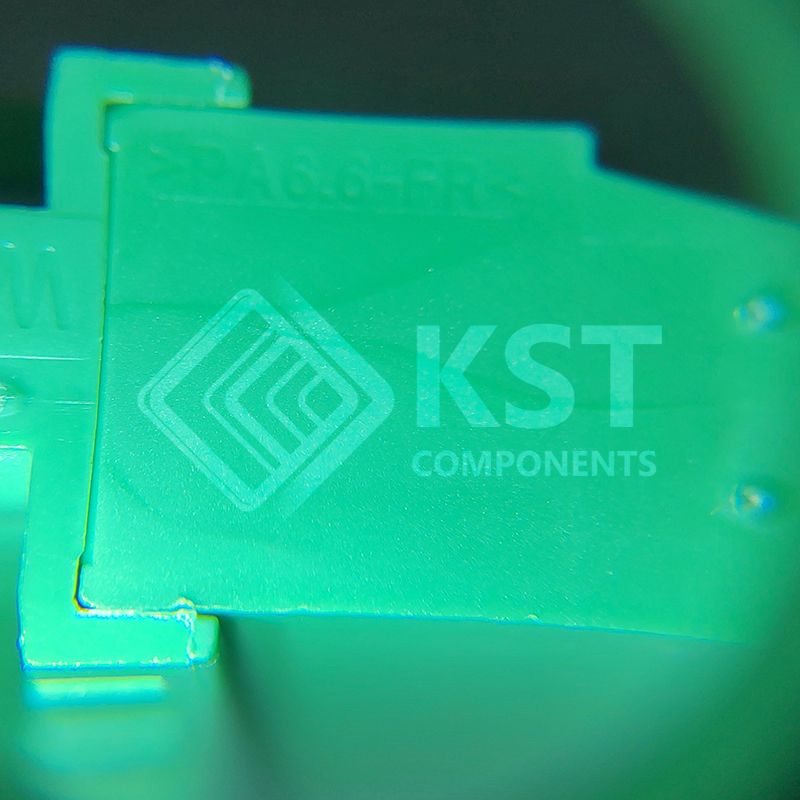

1792320
Part Number:
1792320
Product Classification:
LED Lighting Kits
Manufacturer:
BERNIER CONNECT
Description:
TERM BLOCK PLUG 10POS 5.08MM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Terminal Blocks
Headers, Plugs and Sockets
|
|
|
Manufacturer |
Phoenix Contact
|
|
|
Series |
COMBICON MVSTBR |
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Type |
Plug, Female Sockets
|
|
|
Number of Positions |
10
|
|
|
Positions Per Level |
10
|
|
|
Number of Levels |
1
|
|
|
Pitch |
0.200" (5.08mm)
|
|
|
Header Orientation |
-
|
|
|
Plug Wire Entry |
90°
|
|
|
Termination Style |
Screw - Rising Cage Clamp
|
|
|
Mounting Type |
Free Hanging (In-Line)
|
|
|
Current - IEC |
12A
|
|
|
Voltage - IEC |
630 V
|
|
|
Current - UL |
15 A
|
|
|
Voltage - UL |
300 V
|
|
|
Wire Gauge or Range - AWG |
12-30 AWG
|
|
|
Wire Gauge or Range - mm² |
0.2-2.5mm²
|
|
|
Color |
Green
|
|
|
Operating Temperature |
-
|
|
|
Contact Mating Finish |
Tin
|
|
|
Features |
Retention Latches (Wire Side)
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Ingress Protection |
-
|
|
|
Screw Size |
M3
|
|
|
Torque - Screw |
0.5-0.6 Nm (4.4-5.3 Lb-In)
|
|
|
Wire Strip Length |
7mm
|
|
|
Contact Material |
-
|
|
|
Housing Material |
Polyamide (PA), Nylon
|
|
|
Contact Tail Length |
-
|
|
|
Insulation Height |
1.024" (26.01mm)
|
