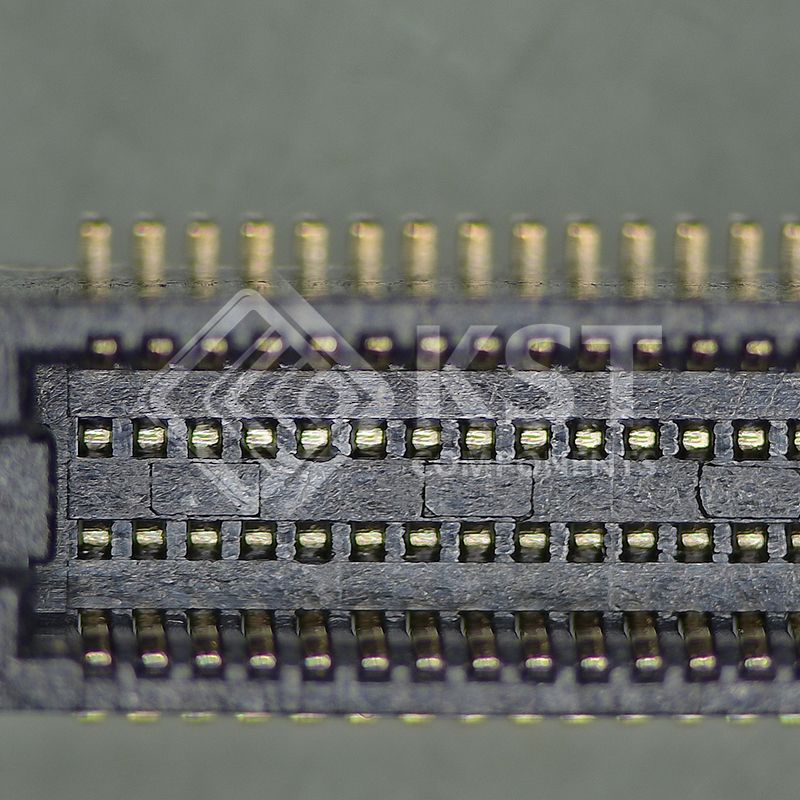

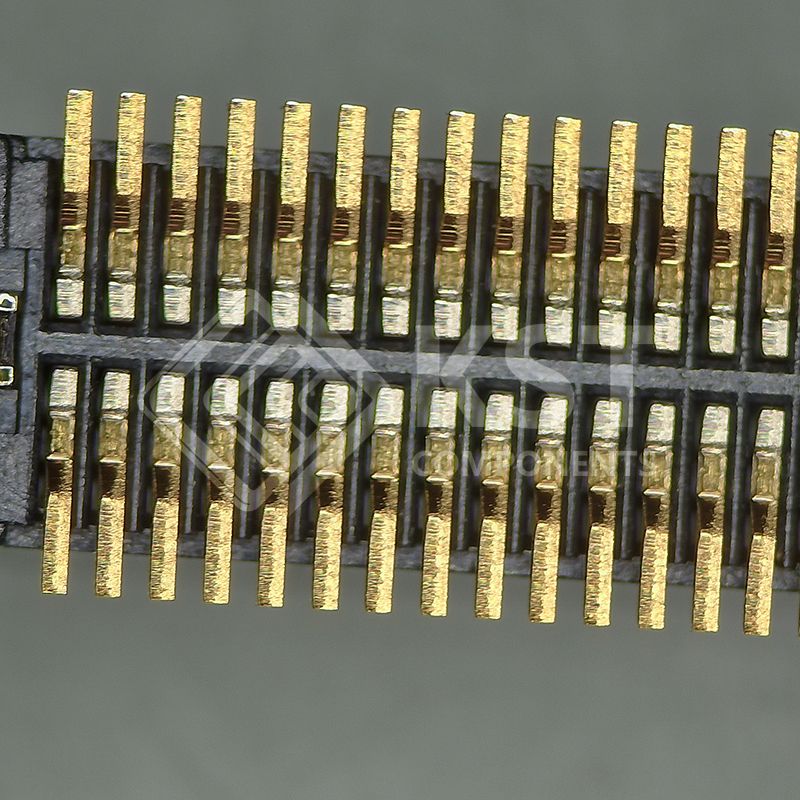

10132797-035100LF
Part Number:
10132797-035100LF
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
AES-USA
Description:
CONN PLUG 30POS SMD GOLD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Arrays, Edge Type, Mezzanine (Board to Board)
|
|
|
Manufacturer |
Amphenol ICC (FCI)
|
|
|
Series |
BergStak®, MezzSelect™ |
|
|
Packaging |

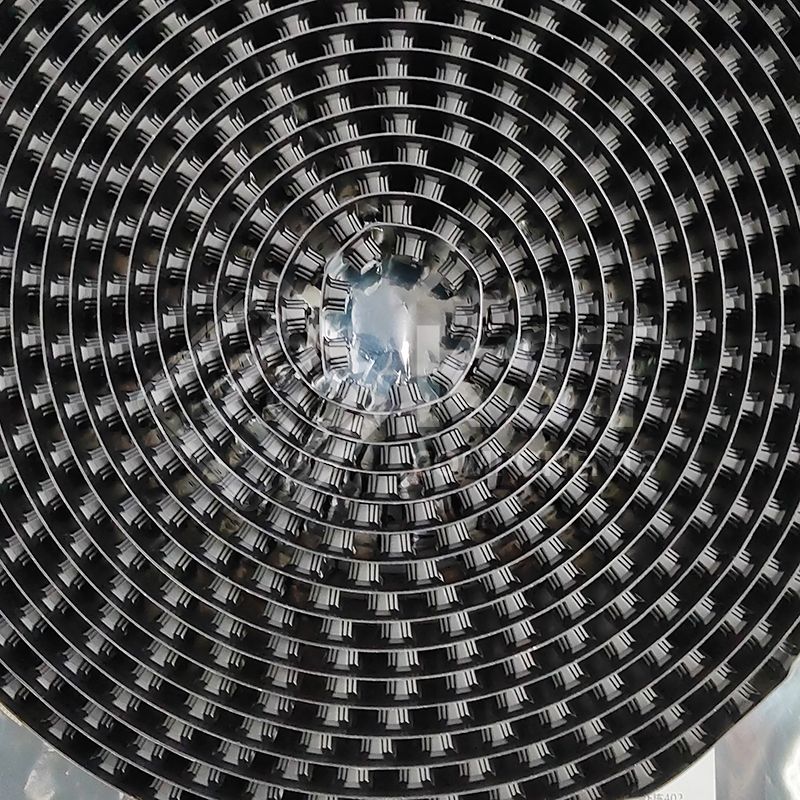

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Plug, Outer Shroud Contacts
|
|
|
Number of Positions |
30
|
|
|
Pitch |
0.020" (0.50mm)
|
|
|
Number of Rows |
2
|
|
|
Mounting Type |
Surface Mount
|
|
|
Features |
Board Guide, Solder Retention
|
|
|
Contact Finish |
Gold
|
|
|
Contact Finish Thickness |
1.00µin (0.025µm)
|
|
|
Mated Stacking Heights |
5mm
|
|
|
Height Above Board |
0.169" (4.30mm)
|
|
|
Base Product Number |
10132797 |
