1-5745968-6
Part Number:
1-5745968-6
Product Classification:
Programmable Display Switches
Manufacturer:
Cinch Connectivity Solutions
Description:

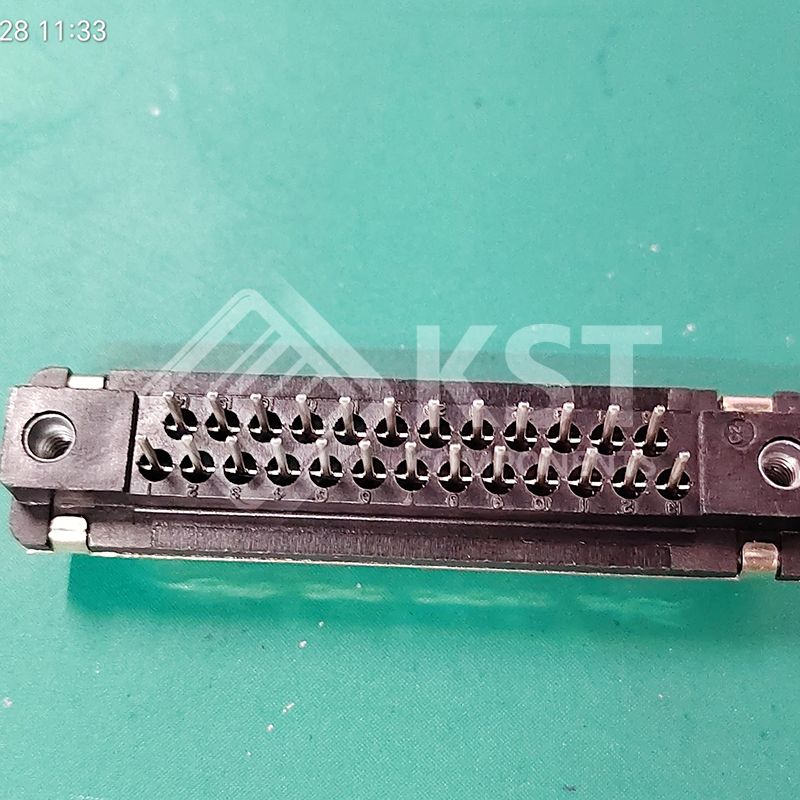

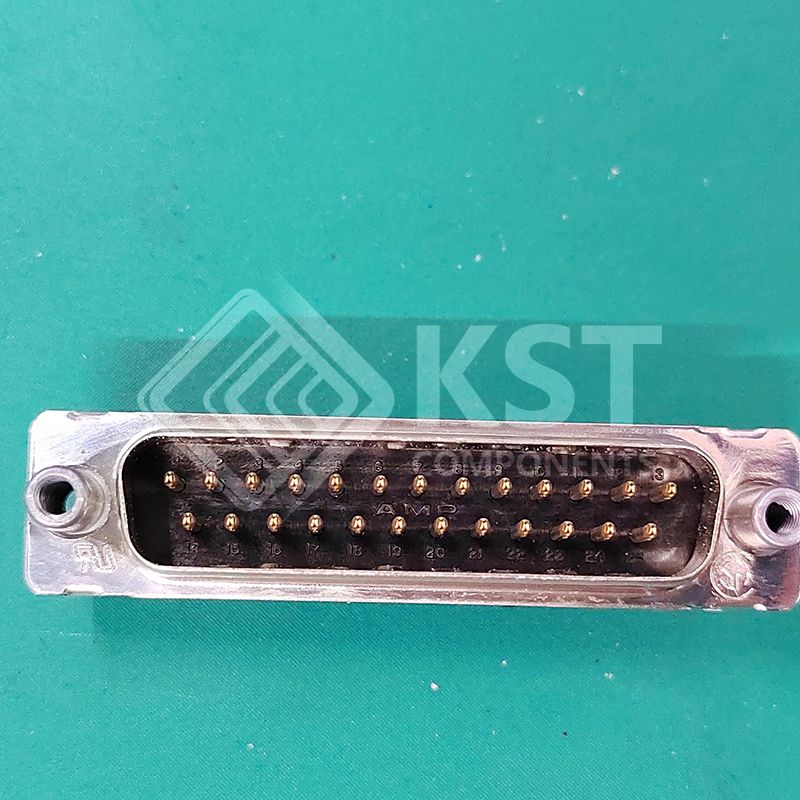

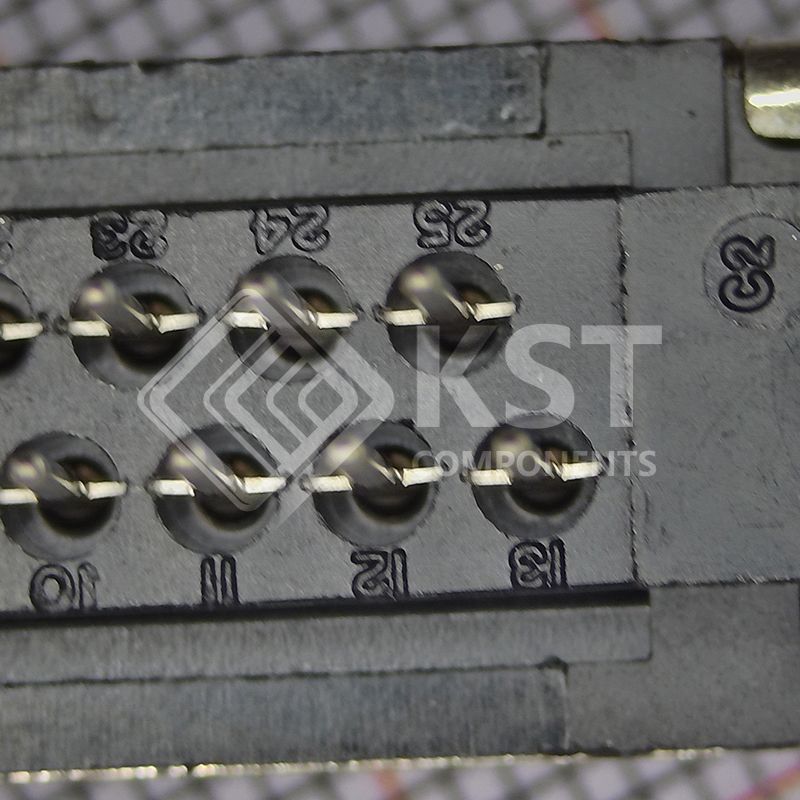

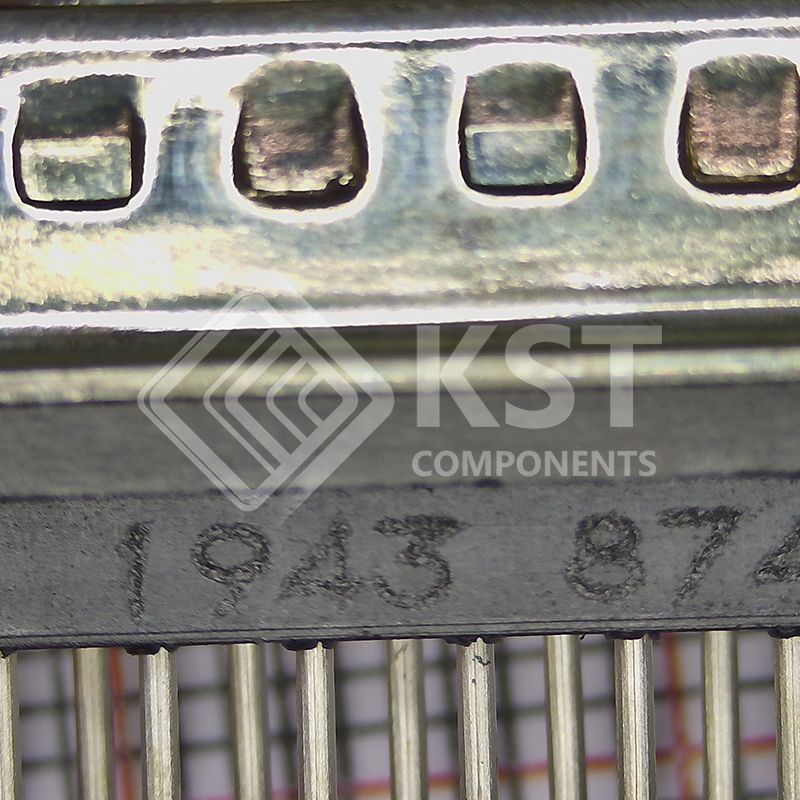

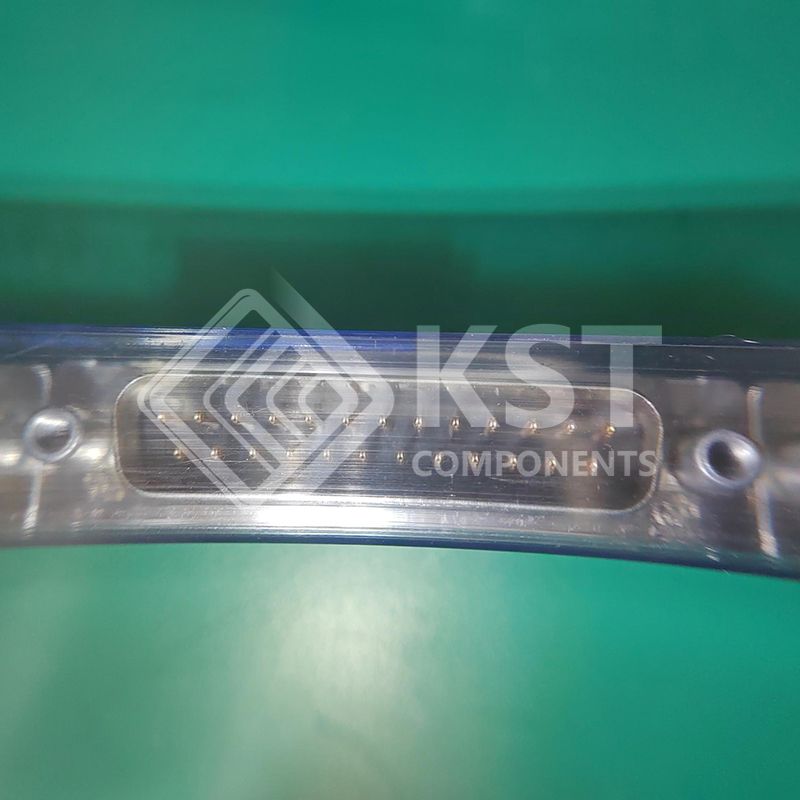

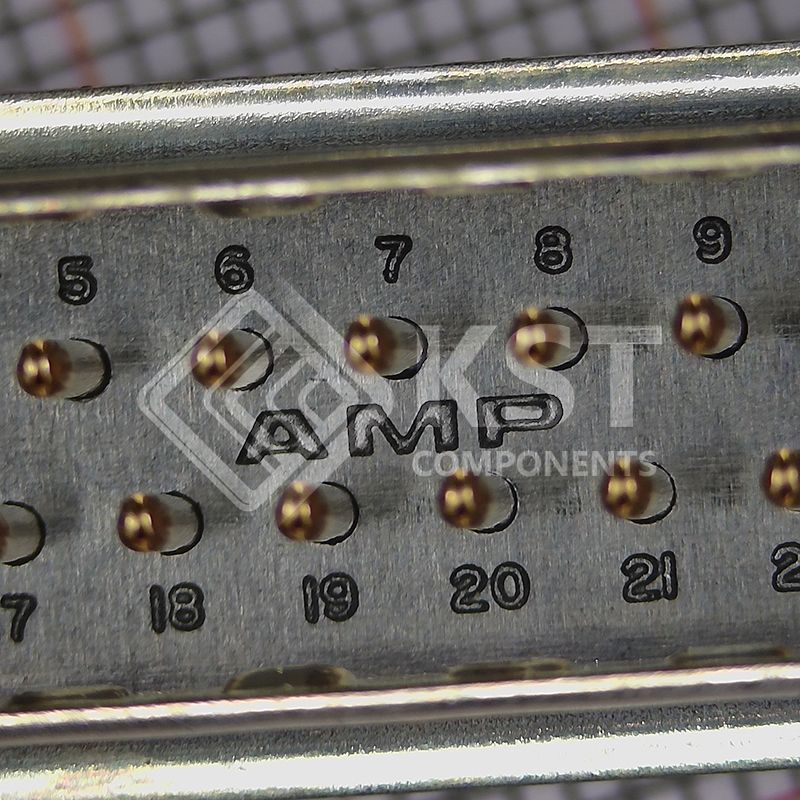

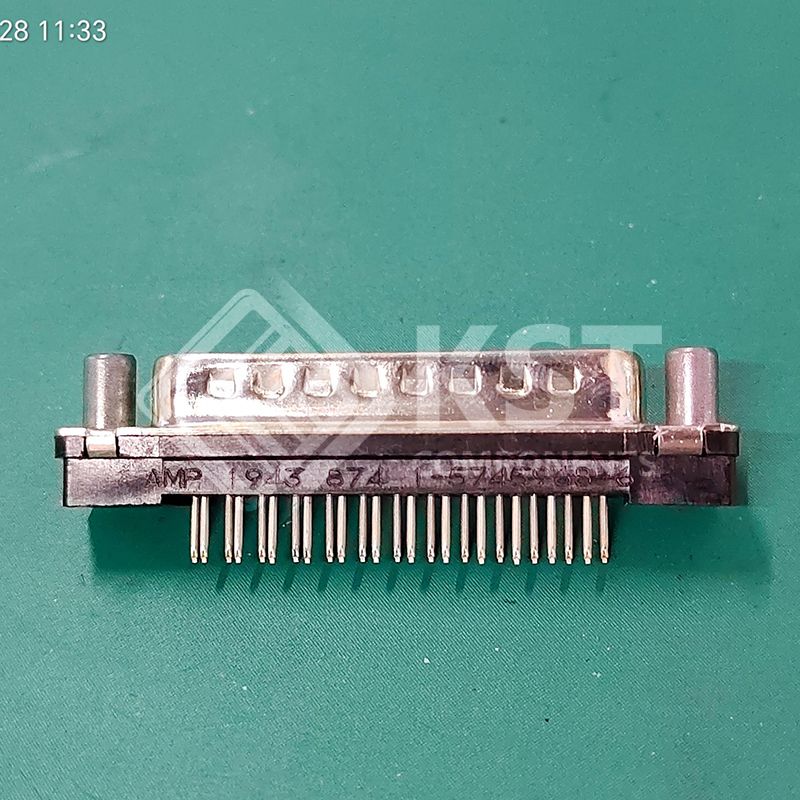

CONN D-SUB PLUG 25POS VERT SLDR
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
D-Sub, D-Shaped Connectors
D-Sub Connector Assemblies
|
|
|
Mfr |
TE Connectivity AMP Connectors |
|
|
Series |
AMPLIMITE HD-20 |
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Connector Style |
D-Sub |
|
|
Connector Type |
Plug, Male Pins
|
|
|
Number of Positions |
25 |
|
|
Number of Rows |
2
|
|
|
Mounting Type |
Through Hole |
|
|
Shell Size, Connector Layout |
3 (DB, B)
|
|
|
Contact Type |
Signal
|
|
|
Flange Feature |
Mating Side, Female Screwlock (4-40)
|
|
|
Termination |
Solder
|
|
|
Shell Material, Finish |
Steel, Tin Plated
|
|
|
Contact Finish |
Gold
|
|
|
Contact Finish Thickness |
Flash
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Current Rating (Amps) |
6A
|
|
|
Backset Spacing |
-
|
|
|
Features |
Grounding Indents
|
|
|
Voltage Rating |
125V
|
|
|
Color |
Black
|
|
|
Contact Form |
-
|
|
|
Dielectric Material |
Polyester
|
|
|
Wire Gauge |
-
|
|
|
Contact Material |
Brass
|
|
|
Operating Temperature |
-55°C ~ 105°C
|
|
|
Base Product Number |
5745968 |
