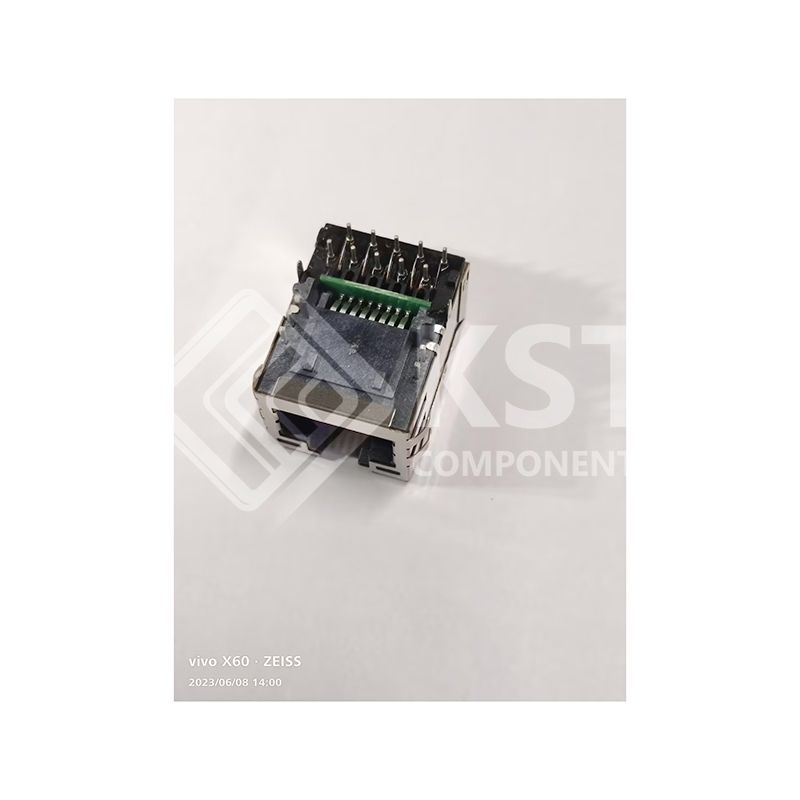

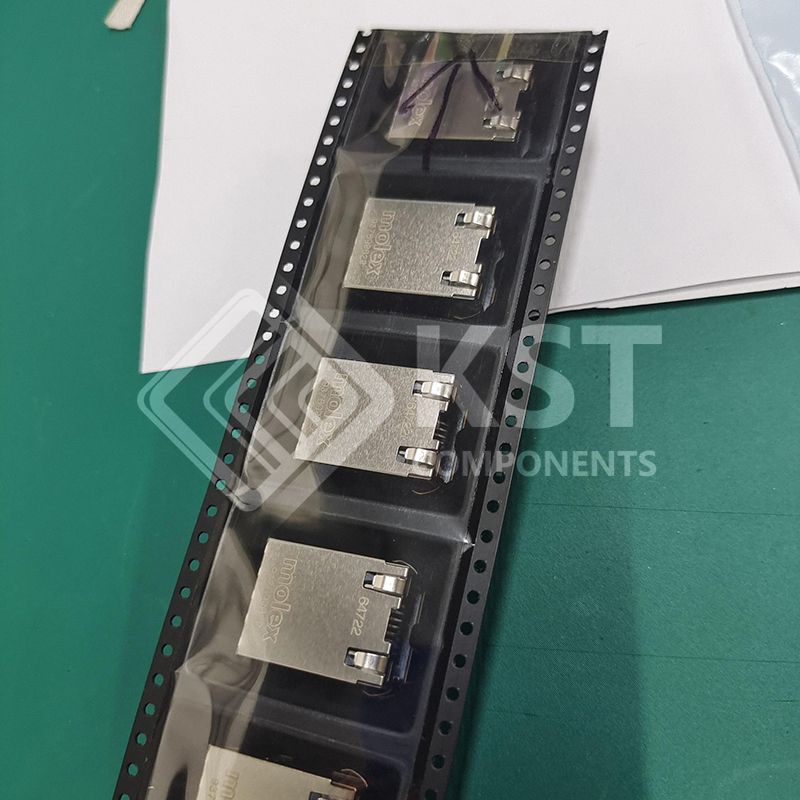

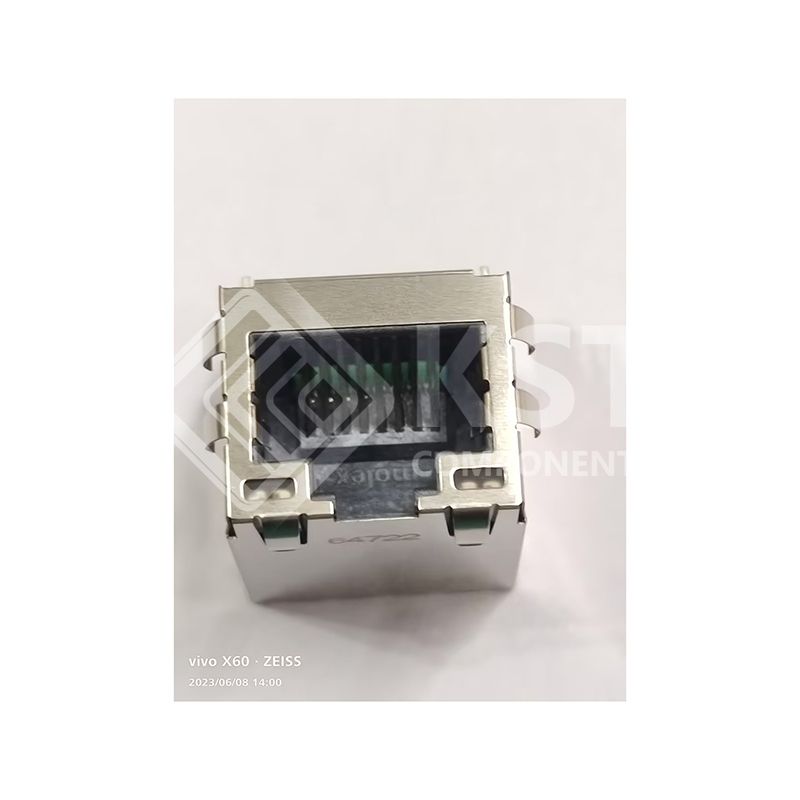

0937698628
Part Number:
0937698628
Product Classification:
Thermal Accessories
Manufacturer:
A&D Engineering
Description:
CONN JACK 1PORT 1000 BASE-T PCB
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Modular Connectors
Modular Connector Jacks With Magnetics
|
|
|
Manufacturer |
Molex
|
|
|
Series |
MXMag 93769 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status |
Active
|
|
|
Connector Type |
RJ45
|
|
|
Number of Ports |
1
|
|
|
Number of Rows |
1
|
|
|
Applications |
10/100/1000 Base-T, AutoMDIX
|
|
|
Mounting Type |
Through Hole
|
|
|
Orientation |
90° Angle (Right)
|
|
|
Termination |
Solder
|
|
|
Height Above Board |
0.555" (14.10mm)
|
|
|
LED Color |
Green, Yellow - Green, Yellow
|
|
|
Number of Cores per Jack |
8
|
|
|
Shielding |
Shielded, EMI Finger
|
|
|
Features |
Board Guide
|
|
|
Tab Direction |
Up
|
|
|
Contact Material |
Phosphor Bronze
|
|
|
Contact Finish |
Gold
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Contact Finish Thickness |
2.00µin (0.051µm)
|
|
|
Shield Material |
Brass, Nickel Coated
|
|
|
Housing Material |
Liquid Crystal Polymer (LCP)
|
|
|
Base Product Number |
093769 |
