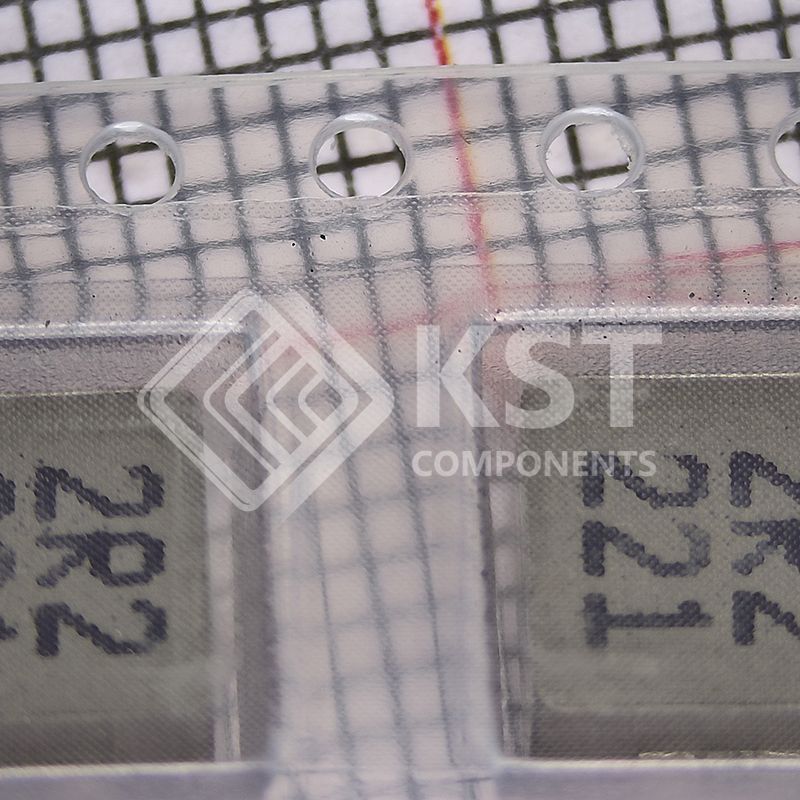

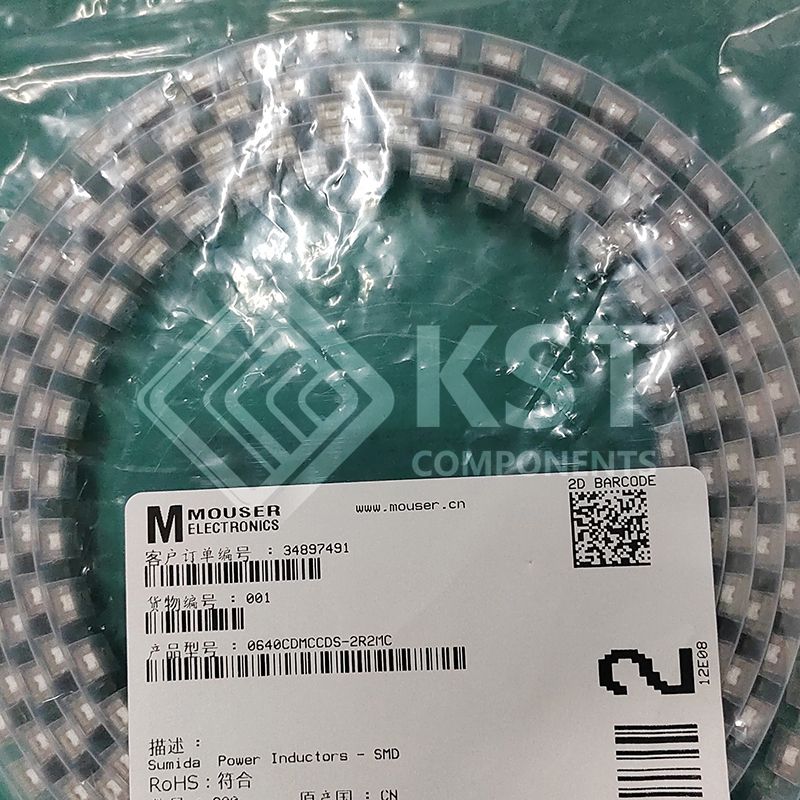

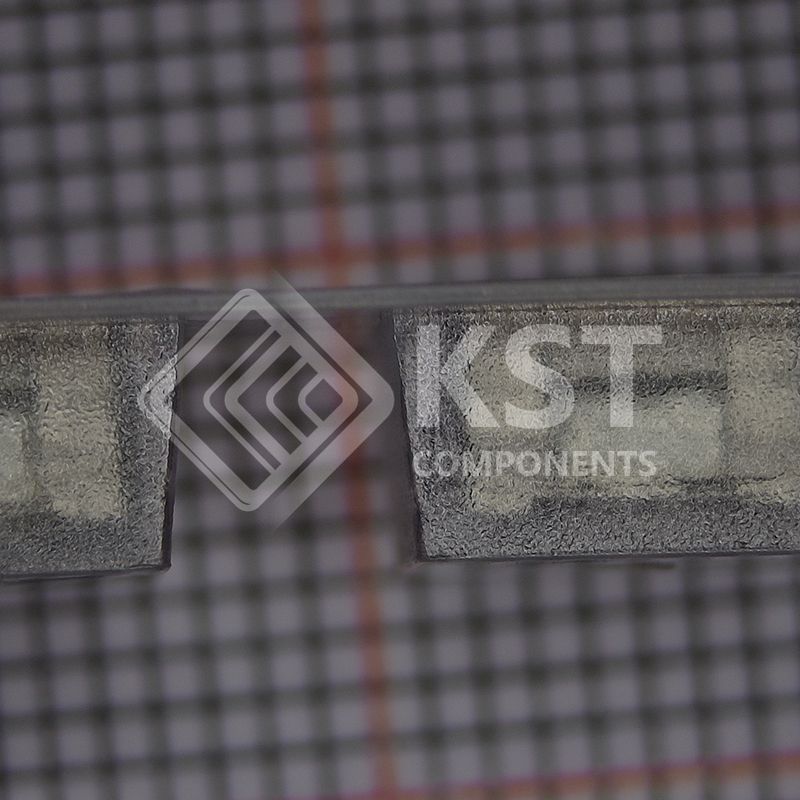

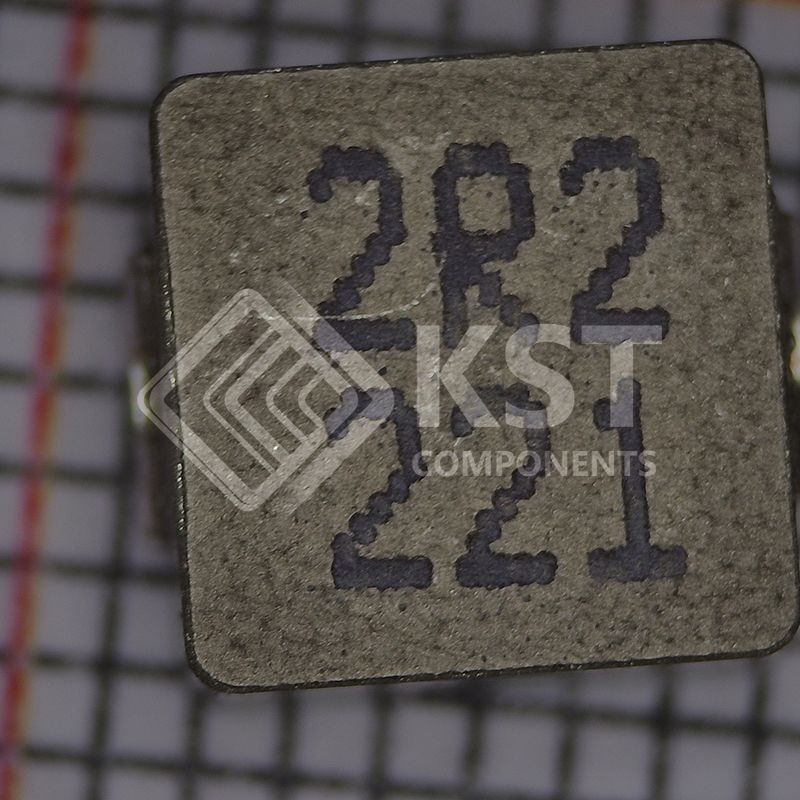

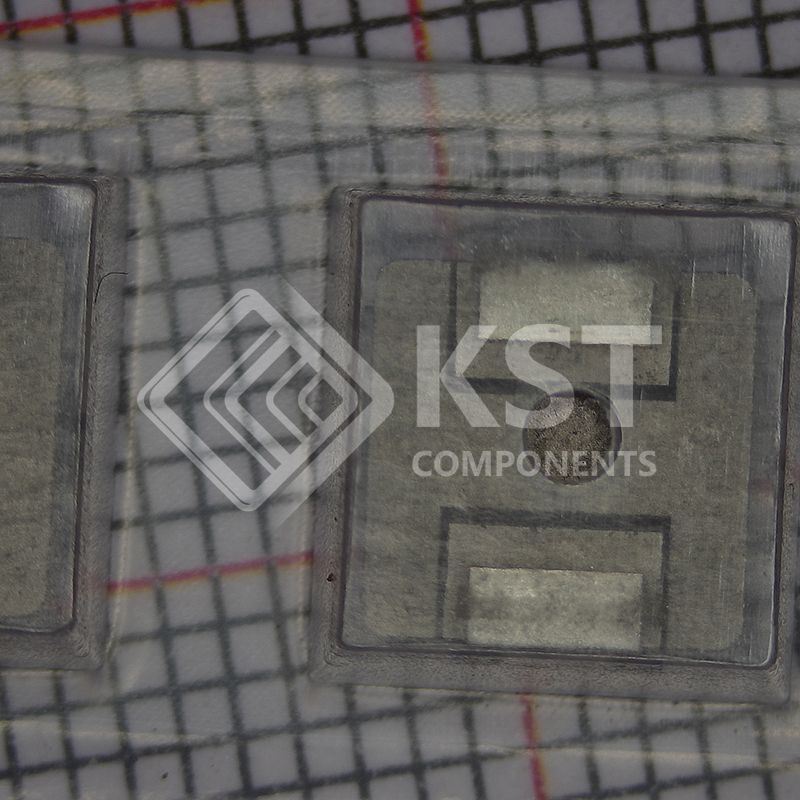

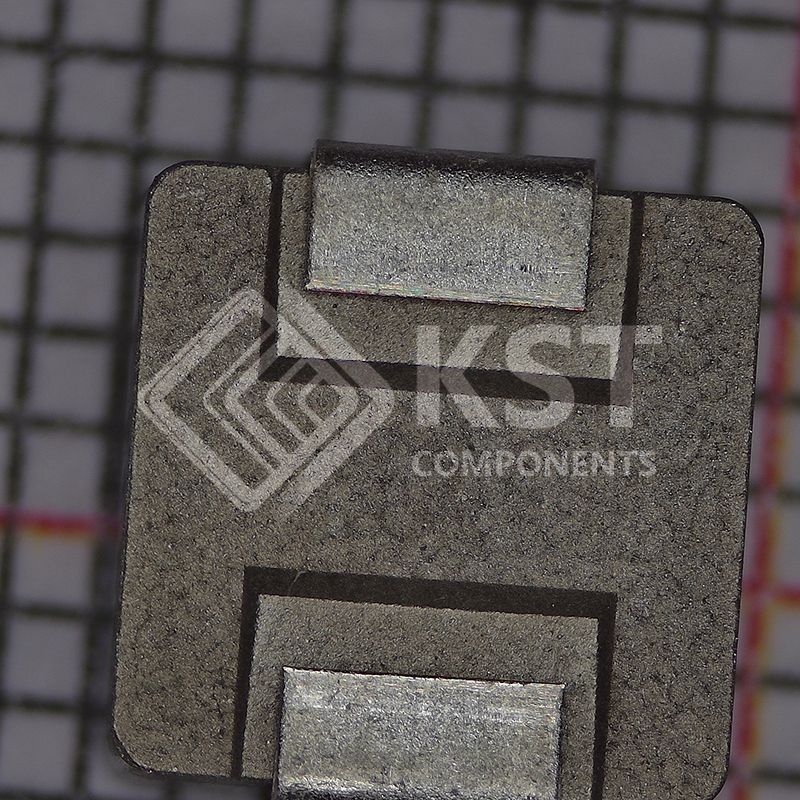

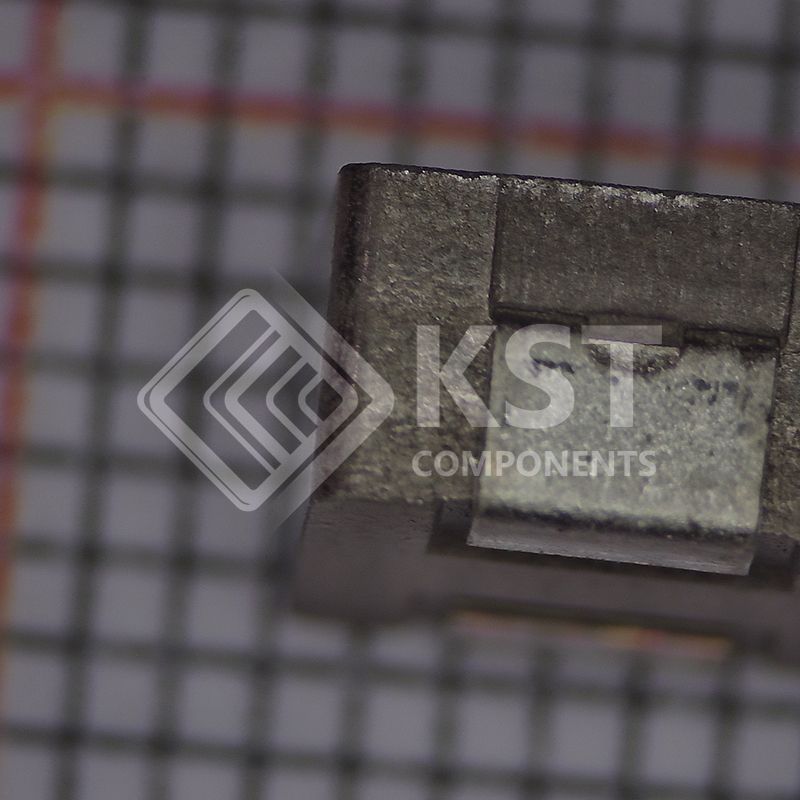

0640CDMCCDS-2R2MC
Part Number:
0640CDMCCDS-2R2MC
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
APG
Description:
FIXED IND 2.2UH 12A 10.8MOHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Sumida America Components Inc. |
|
|
Series |
0640CDMCC/DS |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status |
Active
|
|
|
Type |
Molded
|
|
|
Material - Core |
Metal |
|
|
Inductance |
2.2 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
12 A |
|
|
Current - Saturation (Isat) |
9.4A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
10.8mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
-
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.280" L x 0.260" W (7.10mm x 6.60mm)
|
|
|
Height - Seated (Max) |
0.157" (4.00mm)
|
